IJ防爆耐腐蚀化工碱泵
IJ系列耐腐蚀系为单级单吸悬臂式离心泵，其标记、 额定性能点和安装尺寸等均符合GB／T5662－1985标准，等效于ISO2858．1975，制造技术条件符合ISO5199标准，是在IH系列泵的基础上，参照国外新技术并结合用户实际使用后而优化设计的新产品\它与国家推广的IH型属同一类型泵，其基础安装尺寸等同于IH型。
目录
磷化液专用泵 IJ HJ型耐腐蚀泵 耐腐蚀耐磨 不锈钢卧式离心化工泵
简介：
IJ系列耐腐蚀系为单级单吸悬臂式离心泵，其标记、 额定性能点和安装尺寸等均符合GB／T5662－1985标准，等效于ISO2858．1975，制造技术条件符合ISO5199标准，是在IH系列泵的基础上，参照国外新技术并结合用户实际使用后而优化设计的新产品\它与国家推广的IH型属同一类型泵，其基础安装尺寸等同于IH型。结构特点
泵的结构特点是：IJ型防腐蚀化工碱泵在设计上，采用了先进的水力模型，具有较高的效率，是节能型产品。在结构设计上借鉴了国际ANSI标准，加粗了轴径、缩短了悬臂，提高了运行稳定性。工作温度可达175°C, 可输送悬浮物颗粒小于3mm，含固量小于5%的液体。广泛适用于碱，酸，石化，环保等行业。泵盖通过止口固定是架上，然后通过泵体联接把泵盖夹紧在中间，泵体是轴向吸入，径向排出，脚支承式，可直接固定在底座上。并用悬架支架支撑在底座上。泵的旋转方向：泵通过联轴器由电动机直接驱动，从电动机端看，按顺时针方向旋转。
泵的轴封型式：
机械密封：特殊设计成内装外注式单端面，动环固定，静环补偿机封，密封腔内通八一定压力水，冲洗磨擦端面，同时起冷却作用。
泵的材质：泵的过流部件均采用不锈钢材料，用户可根据所输送介质对泵腐蚀的情况，选用相适应泵的过流部件（即泵体、泵盖和叶轮）材料，主要适用于化工流程中含固量小于50%之内的浆液以及含结晶杂质介质的输送。

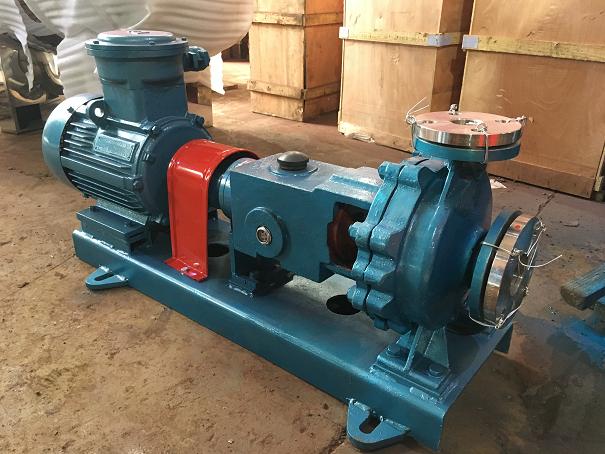

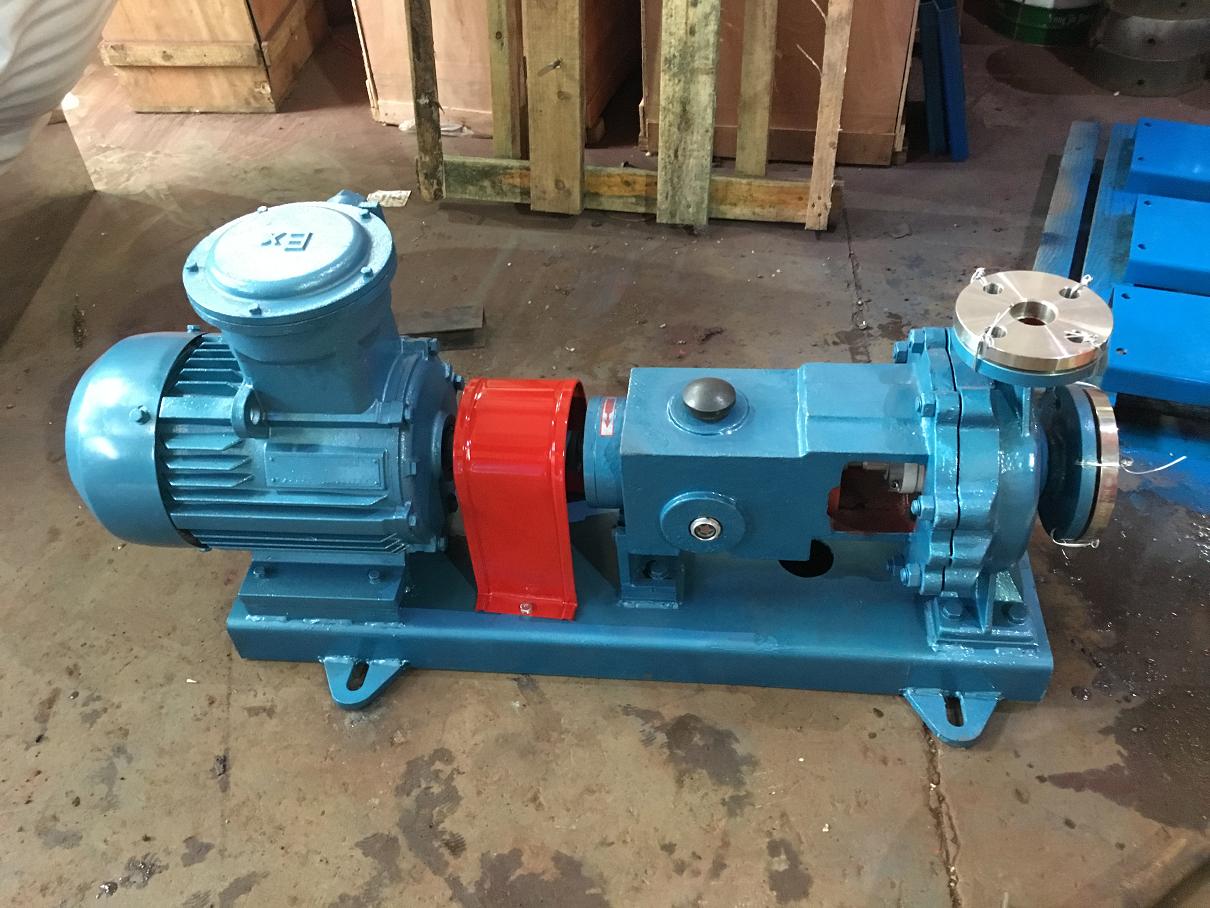

IJ不锈钢碱泵
应用领域：
适用于制碱 工业的纯碱和氨联碱生产的氨盐水母液、氯碱生产的常温苛性碱、氯产品和氯酸盐、次氯酸盐、冶金上的电解铜镍的电解液，生产钴的酸雾液、生产锌的矿浆液、生产钒的钒酸按、生产黄金的酸和流脲液、钢铁业的电镀。
型号：IJ\HJ80-65-125
口径范围：32-100mm
流量范围：12.5-100m3/h扬程范围：20-125m
与IH泵相比，IJ化工泵结构具有以下特点；
1、缩短了叶轮的悬臂，加粗了轴的直径；
2、非对称截面的蜗壳、泵壳无口环；
3、采用三只进口轴承；
4、装有与国外先进的双端面机械密封或填料密封相似的新型密封。
由于以上结构使该泵有以下优越性：
1、可以输送高粘度或固体的介质，这时泵的效率较IH泵高；
2、非对称截面蜗壳减少了流体的冲击损失，缩短了泵壳尺寸；
3、增加轴的强度，减少了转子的挠度，因而运行稳定，密封寿命长；
4、叶轮螺母与叶轮做成一体，改善了泵的入口条件，提高泵的抗汽蚀性能；
5、先进的轴封形式，使密封效果更佳，减少了泵的泄漏；
6、可以不拆卸泵壳和叶轮的情况下调节泵的间隙，减少了维修时间，节省维修成本。
用途
· 制碱工业：用于纯碱和氨,联碱生产的氨盐水母液，用于氯碱生产的常温苛性碱，氯产品 和氯酸盐，次氯酸盐。· 有色冶金：电解铜镍的电解液，生产钴的酸雾液，生产锌的矿浆液，生产钒的钒酸铵，生产黄金的酸性硫脲液等的输送。
· 钢铁工业：电镀，酸洗，废酸处理。
· 制酸工业：硝酸，硫酸，盐酸，磷酸，醋酸等。
· 石油化工：石油 精炼乙醛，烷基苯的制造。
· 合成纤维和塑料工业：涤纶，聚氯乙烯的生产，纺织，印染工业。
· 造纸工业：纸浆蒸煮液和漂白液的输送。
· 化肥工业：尿素，硝铵的生产。
· 制药工业：医药和农药的生产。
· 环境保护：酸雾液的输送。
· 海洋工程：海水淡化，海上采油装置，滨海电站，真空制盐等。
性能参数
| 型 号 | 转速 r/min | 流量 m3/h | 扬程 m | 效率 % | 轴功率 | 配 套 电 机 | ||
| 比重r=1.00 | 比重r=1.35 | 比重r=1.84 | ||||||
| 32-20-180 | 1450 | 1.8~3 | 10~12 | 16 | 0.55 | Y802-4/0.75 | Y90S-4/1.1 | Y90L-4/1.5 |
| 2900 | 3.5~6 | 40~68 | 16.5 | 3 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | |
| 32-20-180A | 3~5 | 35~40 | 15 | 2.4 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | |
| 40-25-125 | 2900 | 4.8~7.2 | 16~22 | 39 | 0.84 | Y802-2/1.1 | Y90S-2/1.5 | Y90L-2/2.2 |
| 40-25-125A | 4~6.2 | 13~18 | 35 | 0.61 | Y802-2/1.1 | Y802-2/1.1 | Y90S-2/1.5 | |
| 40-25-125B | 2.5~3.8 | 13~18 | 35 | 0.36 | Y801-2/0.75 | Y801-2/0.75 | Y802-2/1.1 | |
| 40-25-160 | 2900 | 48~7.2 | 24~33 | 33 | 1.48 | Y90L-2/2.2 | Y100L-2/3 | Y112M-2/4 |
| 40-25-160A | 4~6.2 | 20.8~31.2 | 27 | 1.36 | Y90S-2/1.5 | Y90L-2/2.2 | Y100L-2/3 | |
| 40-25-160B | 3.2~4.8 | 16~22 | 27 | 0.8 | Y802-2/1.1 | Y90S-2/1.5 | Y90L-2/2.2 | |
| 40-25-160C | 2.4~3.6 | 11.2~16.5 | 19 | 0.6 | Y801-2/0.75 | Y802-2/1.1 | Y90S-2/1.5 | |
| 40-25-200 | 2900 | 4.8~7.2 | 40~55 | 24.5 | 3.3 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 |
| 40-25-200A | 4.4~6.6 | 36.8~51 | 24.5 | 2.81 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | |
| 40-25-200B | 3.8~5.7 | 32~45 | 23.8 | 2.19 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | |
| 40-25-200C | 2.8~4.3 | 24~35 | 21.6 | 1.36 | Y90L-2/2.2 | Y100L-2/3 | Y112M-2/4 | |
| 40-25-250 | 2900 | 4.8~7.2 | 64~85 | 22.2 | 5.88 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M1-2/15 |
| 40-25-250A | 4.5~6.7 | 60~80 | 20.9 | 5.47 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | |
| 40-25-250B | 3.8~5.7 | 52~70 | 20.3 | 4.18 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | |
| 40-25-250C | 2.8~4.3 | 40~55 | 17.2 | 3 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | |
| 50-32-125 | 1450 | 5~9 | 4~6 | 43 | 0.199 | Y801-4/0.55 | Y801-4/0.55 | Y801-4/0.55 |
| 2900 | 10~15 | 16~22 | 47 | 1.44 | Y90L-2/2.2 | Y100L-2/3 | Y112M-2/4 | |
| 50-32-125A | 9~14 | 13~18 | 45 | 1.1 | Y90S-2/1.5 | Y90L-2/2.2 | Y100L-2/3 | |
| 50-32-160 | 1450 | 5~9 | 6.5~9.6 | 40 | 0.34 | Y801-4/0.55 | Y802-4/0.75 | Y90S-4/1.1 |
| 2900 | 10~15 | 25.6~33 | 44 | 2.47 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | |
| 50-32-160A | 9.3~13.5 | 20.8~31.2 | 42 | 1.88 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | |
| 50-32-200 | 1450 | 5~9 | 10~15 | 33 | 0.65 | Y802-4/0.75 | Y90S-4/1.1 | Y90L-4/1.5 |
| 2900 | 10~15 | 40~60 | 38 | 4.47 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | |
| 50-32-200A | 9.3~14 | 34.5~51.6 | 39 | 3.5 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | |
| 50-32-200B | 8.7~13 | 30.4~45.6 | 36 | 3.13 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | |
| 50-32-250 | 1450 | 5~9 | 16~24 | 27 | 1.27 | Y90L-4/1.5 | Y100L1-4/2.2 | Y100L2-4/3 |
| 2900 | 10~15 | 64~86 | 32 | 8.5 | Y160M1-2/11 | Y160M2-2/15 | Y18M-2/22 | |
| 50-32-250A | 9.3~14 | 55~80 | 29 | 7.51 | Y160M1-2/11 | Y160M2-2/15 | Y160L-2/18.5 | |
| 50-32-250B | 8.7~13 | 48.4~72.6 | 28 | 6.41 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | |
| 50-32-260 | 2900 | 4.8~7.2 | 85~105 | 13 | 12.56 | Y160M2-2/15 | Y180M-2/22 | Y200L1-2/30 |
| 50-32-400 | 2900 | 10~15 | 180~250 | 16 | 48 | Y250M-2/55 | Y280S-2/75 | Y315S-2/110 |
| 65-50-125 | 1450 | 10~15 | 4~6 | 55 | 0.31 | Y801-4/0.55 | Y801-4/0.55 | Y802-4/0.75 |
| 2900 | 20~30 | 16~24 | 62 | 2.3 | Y100L-2/3 | Y112M-2/4 | Y132S1-2/5.5 | |
| 65-50-125A | 18~27 | 12.8~19.2 | 53 | 1.85 | 790L-2/2.2 | Y100L-2/3 | Y112M-2/4 | |
| 65-50-160 | 1450 | 10~15 | 6.5~9.6 | 51 | 0.53 | Y802-4/0.75 | Y90S-4/1.1 | Y90S-4/1.1 |
| 2900 | 20~30 | 25.6~33 | 55 | 4 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | |
| 65-50-160A | 18~27 | 20.8~31.2 | 50 | 3.2 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | |
| 65-40-200 | 1450 | 10~15 | 10~15 | 46 | 0.93 | Y90S-4/1.1 | Y90L-4/1.5 | Y100L1-4/2.2 |
| 2900 | 20~30 | 40~60 | 52 | 6.5 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | |
| 65-40-200A | 18~27 | 34.5~51.6 | 51 | 5.35 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M1-2/11 | |
| 65-40-200B | 17.5~26 | 30~45.6 | 50 | 4.5 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | |
| 65-40-250 | 1450 | 10~15 | 16~21 | 39 | 1.75 | Y100L2-4/3 | Y112M-4/4 | Y132S-4/5.5 |
| 2900 | 20~30 | 64~85 | 43.5 | 12.5 | Y160M2-2/15 | Y160L-2/18.5 | Y200L1-2/30 | |
| 65-40-250A | 18~27 | 55~80 | 42 | 10.4 | Y160M2-2/15 | Y160L-2/18.5 | Y180M-2/22 | |
| 65-50-250 | 1450 | 11~17 | 12~16 | 42 | 1.34 | Y90L-4/1.5 | Y100L1-4/2.2 | Y100L2-4/3 |
| 2900 | 22~33 | 59~62 | 46 | 10.8 | Y160M2-2/15 | Y160L-2/18.5 | Y200L1-2/30 | |
| 65-50-250A | 20~30 | 40~52 | 46 | 7.4 | Y160M1-2/11 | Y160M1-2/11 | Y160M2-2/15 | |
| 65-40-315 | 1450 | 10~15 | 25.6~33 | 33 | 3.3 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 |
| 2900 | 20~30 | 100~127 | 39 | 21.8 | Y200L1-2/30 | Y200L2-2/37 | Y225M-2/45 | |
| 65-40-315A | 18~27 | 86~125 | 39 | 17.6 | Y180M-2/22 | Y200L1-2/30 | Y200L2-2/37 | |
| 80-65-125 | 1450 | 20~30 | 4~6 | 64 | 0.53 | Y802-4/0.75 | Y90S-4/1.1 | Y90L-4/1.5 |
| 2900 | 40~60 | 16~25 | 65 | 4.1 | Y132S1-2/5.5 | Y132S2-2/7.5 | Y160M1-2/11 | |
| 80-65-125A | 37~56 | 14~21 | 62 | 3.53 | Y112M-2/4 | Y132S1-2/5.5 | Y132S2-2/7.5 | |
| 80-65-160 | 1450 | 20~30 | 6.4~10 | 62 | 0.88 | Y90S-4/1.1 | Y90L-4/1.5 | Y100L1-4/2.2 |
| 2900 | 40~60 | 29~35 | 67 | 6.5 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | |
| 80-65-160A | 37~56 | 24~33 | 62 | 5.64 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | |
| 80-50-180 | 1450 | 16~24 | 6.5~11 | 57 | 0.96 | Y90L-4/1.5 | Y100L1-4/2.2 | Y100L1-4/2.2 |
| 2900 | 32~48 | 36~41 | 62 | 7.03 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | |
| 80-50-200 | 1450 | 20~30 | 10~14 | 57 | 1.49 | Y100L1-4/2.2 | Y100L2-4/3 | Y112M-4/4 |
| 2900 | 40~60 | 46~54 | 63 | 10.8 | Y160M-2/15 | Y160L-2/18.5 | Y180M-2/22 | |
| 80-50-200A | 37~56 | 34.5~46 | 61 | 8.9 | Y160M1-2/11 | Y1602-2/15 | Y160L-2/18.5 | |
| 80-50-200B | 35~52 | 30.5~44 | 58 | 7.8 | Y160M1-2/11 | Y160M2-2/15 | Y160M2-2/15 | |
| 80-50-220 | 1450 | 16~24 | 11~17 | 51 | 1.71 | Y100L1-4/2.2 | Y100L2-4/3 | Y112M-4/4 |
| 2900 | 32~48 | 42~67 | 56 | 12.7 | Y160M2-2/15 | Y160L-2/18.5 | Y180M-2/22 | |
| 80-50-250 | 1450 | 20～30 | 16~21 | 52 | 2.62 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 |
| 2900 | 40~60 | 72~87 | 57 | 19.11 | Y180M-2/22 | Y200L1-2/30 | Y225M-2/45 | |
| 80-50-250A | 37~56 | 55~75 | 57 | 15.33 | Y160L-2/18.5 | Y180M-2/22 | Y200L1-2/30 | |
| 80-50-300 | 1450 | 16~24 | 16~26 | 45 | 3 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 |
| 2900 | 32~48 | 65~103 | 50 | 21.8 | Y200L1-2/30 | Y200L2-2/37 | Y225M-2/45 | |
| 80-50-315 | 1450 | 20~30 | 29~35 | 44 | 4.9 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 |
| 2900 | 40~60 | 100~127 | 49 | 34.7 | Y225M-2/45 | Y250M-2/55 | Y280S-2/75 | |
| 80-50-315A | 37~56 | 86~125 | 48 | 28.4 | Y200L2-2/37 | Y225M-2/45 | Y250M-2/55 | |
| 80-50-315B | 35~52 | 76~100 | 47 | 23.8 | Y200L1-2/30 | Y200L2-2/37 | Y250M-2/55 | |
| 80-50-400 | 1450 | 16~24 | 31~49 | 29 | 8.9 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 |
| 2900 | 32~48 | 123~195 | 34 | 60.9 | Y280S-2/75 | Y280M-2/90 | Y315M1-2/132 | |
| 100-80-125 | 1450 | 40~60 | 4~6 | 69 | 1 | Y90L-4/1.5 | Y100L1-4/2.2 | Y100L2-4/3 |
| 2900 | 68~120 | 16~24 | 74 | 7.36 | Y160M1-2/11 | Y160M2-2/15 | Y160L-2/18.5 | |
| 100-80-125A | 65~112 | 14~22 | 73 | 6 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | |
| 100-80-125B | 69.6~104 | 12~18 | 72.5 | 4.9 | Y132S2-2/7.5 | Y160M1-2/11 | Y160M2-2/15 | |
| 100-80-160 | 1450 | 40~60 | 6.4~9 | 69 | 1.58 | Y100L1-4/2.2 | Y100L2-4/3 | Y112M-4/4 |
| 2900 | 70~120 | 26~35 | 70 | 12.4 | Y160M2-2/15 | Y160L-2/18.5 | Y200L1-2/30 | |
| 100-80-160A | 65~110 | 25~32 | 69 | 10.3 | Y160M2-2/15 | Y160L-2/18.5 | Y180M-2/22 | |
| 100-80-200 | 1450 | 60~90 | 10~15 | 68 | 3.75 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 |
| 2900 | 120~170 | 38~54 | 71 | 28.7 | Y200L2-3/37 | Y225M-2/45 | Y250M-2/55 | |
| 100-80-200A | 108~162 | 33~50 | 69 | 22.1 | Y200L1-2/30 | Y200L2-2/37 | Y225M-2/45 | |
| 100-80-400 | 1450 | 60~90 | 45~53 | 52 | 19.65 | Y180L-4/22 | Y200L-4/30 | Y225M-4/45 |
| 2900 | 120~170 | 180~202 | 55.5 | 147.3 | Y315L1-2/160 | Y355M-2/250 | ||
| 100-80-450 | 1450 | 48~79 | 60~80 | 53.5 | 24 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 |
| 100-80-450A | 50~70 | 50~70 | 52 | 18.84 | Y180L-4/22 | Y200L-4/30 | Y225S-4/37 | |
| 100-65-200 | 1450 | 40~60 | 10~15 | 68 | 2.5 | Y100L2-4/3 | Y112M-4/4 | Y132S-4/5.5 |
| 2900 | 80~120 | 45~53 | 72 | 18.9 | Y180M-2/22 | Y200L1-2/30 | Y225M-2/45 | |
| 100-65-200A | 64~120 | 35~46 | 68 | 16 | Y160L-2/18.5 | Y200L1-2/30 | Y200L2-2/37 | |
| 100-65-220 | 1450 | 30~45 | 11~17 | 60.5 | 2.7 | Y112M-4/4 | Y132S-4/5.5 | Y132M-4/7.5 |
| 2900 | 56~90 | 42~67 | 65.5 | 20.3 | Y180M-2/22 | Y200L1-2/30 | Y225M-4/45 | |
| 100-65-250 | 1450 | 40~60 | 16~22 | 63 | 4.3 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 |
| 2900 | 70~130 | 70~84 | 65 | 33.5 | Y200L2-2/37 | Y250M-2/55 | Y280S-2/75 | |
| 100-65-250A | 65~120 | 60~74 | 65 | 26.8 | Y200L1-2/30 | Y225M-2/45 | Y250M-2/55 | |
| 100-65-250B | 70~105 | 49~72 | 65 | 22.1 | Y200L1-2/30 | Y200L2-2/37 | Y225M-2/45 | |
| 100-65-315 | 1450 | 35~65 | 30~33 | 60 | 7.26 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 |
| 2900 | 80~120 | 115~127 | 62 | 54.9 | Y280S-2/75 | Y280M-2/90 | Y315S-2/110 | |
| 100-65-315A | 65~110 | 86~125 | 62 | 44.1 | Y250M-2/55 | Y280S-2/75 | Y280M-2/90 | |
| 100-65-315B | 70~105 | 76~144 | 62 | 36.3 | Y225M-2/45 | Y250M-2/55 | Y280S-2/75 | |
| 100-65-315C | 70~108 | 81~121 | 62 | 39.9 | Y225M-2/45 | Y250M-2/55 | Y280S-2/75 | |
| 100-65-400 | 1450 | 30~45 | 31~49 | 40 | 12.13 | Y160L-4/15 | Y180M-4/18.5 | Y180L-4/22 |
| 2900 | 56~90 | 123~195 | 50 | 77.6 | Y280M-2/90 | Y315M-2/132 | Y315L1-2/160 | |
| 125-80-200 | 1450 | 60~90 | 10~15 | 68 | 3.75 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 |
| 2900 | 100~180 | 40~60 | 72 | 28.3 | Y200L2-2/37 | Y225M-2/45 | Y280S-2/75 | |
| 125-80-200A | 95~170 | 38~46 | 72 | 21.2 | Y200L1-2/30 | Y200L1-2/30 | Y225M-2/45 | |
| 125-80-250 | 1450 | 60~90 | 16~24 | 48 | 8.5 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 |
| 2900 | 100~180 | 60~85 | 62 | 52.6 | Y280S-2/75 | Y180M-2/90 | Y315S-2/110 | |
| 125-80-250A | 95~170 | 50~80 | 54 | 44.9 | Y250M-2/55 | Y280S-2/75 | Y280M-2/90 | |
| 125-80-350 | 1450 | 40~60 | 30~42 | 50 | 10.2 | Y160L-4/15 | Y180M-4/18.5 | Y180L-4/22 |
| 2900 | 80~120 | 120~155 | 53 | 77 | Y280M-2/90 | Y315S-2/110 | ||
| 125-80-350A | 73~109 | 100~135 | 50 | 61.9 | Y280S-2/75 | Y280M-2/90 | Y315M-2/132 | |
| 125-100-200 | 1450 | 70~130 | 10~15 | 80 | 4.25 | Y132S-4/5.5 | Y132M-4/7.5 | Y160M-4/11 |
| 2900 | 160~240 | 40~55 | 72 | 37.8 | Y225M-2/45 | Y250M-2/55 | Y280S-2/75 | |
| 125-100-200A | 165~200 | 41~46 | 70 | 31.1 | Y200L2-2/37 | Y250M-2/55 | Y280S-2/75 | |
| 125-100-250 | 1450 | 80~120 | 16~24 | 72 | 7.56 | Y160M-4/11 | Y160L-4/15 | Y180M-4/18.5 |
| 2900 | 160~240 | 70~85 | 75 | 58.1 | Y280S-2/75 | Y280M-2/90 | Y315M-2/132 | |
| 125-100-250A | 160~200 | 52~78 | 72 | 44.3 | Y250M-2/55 | Y280S-2/75 | Y280M-2/90 | |
| 125-100-280 | 1450 | 70~150 | 17~27 | 67 | 10.5 | Y160L-4/15 | Y180M-4/18.5 | Y180L-4/22 |
| 2900 | 160~240 | 80~105 | 70 | 77.7 | Y280M-2/90 | Y315S-2/110 | Y315L1-2/160 | |
| 125-100-315 | 1450 | 80~120 | 28~35 | 67 | 13 | Y160L-4/15 | Y180L-4/22 | Y200L-4/30 |
| 2900 | 160~240 | 96~127 | 70 | 97.2 | Y315S-2/110 | Y315L1-2/160 | ||
| 125-100-315A | 160~200 | 81~121 | 69 | 71.7 | Y280M-2/90 | Y315S-2/110 | Y315L1-2/160 | |
| 125-100-400 | 1450 | 70~140 | 42~52 | 62 | 22 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 |
| 125-100-400A | 60~130 | 36~45 | 60.5 | 17.4 | Y180L-4/22 | Y200L-4/30 | Y225M-4/45 | |
| 125-100-450 | 1450 | 70~150 | 50~67 | 58 | 30 | Y225S-4/37 | Y225M-4/45 | Y280S-4/75 |
| 150-125-250 | 1450 | 150~300 | 13~23 | 72 | 15.1 | Y180M-4/18.5 | Y200L-4/30 | Y225S-4/37 |
| 150-125-250A | 150~250 | 12~17 | 70 | 11.3 | Y160L-4/15 | Y180L-4/22 | Y2200L-430 | |
| 150-125-315 | 1450 | 160~250 | 28~35 | 77 | 22.63 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 |
| 150-125-315A | 150~240 | 21~31 | 72 | 17.7 | Y180L-4/22 | Y200L-4/30 | Y225S-4/37 | |
| 150-125-350 | 1450 | 160~240 | 36~41 | 70 | 31.1 | Y225S-4/37 | Y225M-4/45 | Y280S-4/75 |
| 150-125-400 | 1450 | 150~300 | 40~54 | 71 | 38.3 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 |
| 150-125-400A | 150~250 | 36~45 | 70 | 30.1 | Y225S-4/37 | Y225M-4/45 | Y280S-4/75 | |
| 150-125-450 | 1450 | 160~240 | 46~74 | 73 | 52.2 | Y250M-4/55 | Y280S-4/75 | Y315S-4/110 |
| 150-125-500 | 1450 | 200~280 | 75~85 | 66 | 79.2 | Y280M-4/90 | Y315M-4/132 | Y315L1-4/160 |
| 150-125-560 | 1450 | 250~350 | 95~110 | 62 | 131.7 | Y315L1-4/160 | Y315L2-4/200 | |
| 175-150-250 | 1450 | 240~360 | 13~21 | 68 | 24.7 | Y200L-4/30 | Y225M-4/45 | Y250M-4/55 |
| 175-150-280 | 1450 | 240~360 | 18~29 | 65.5 | 35 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 |
| 175-150-315 | 1450 | 240~360 | 24~37 | 75 | 39.2 | Y225M-4/45 | Y250M-4/55 | Y280S-4/75 |
| 175-150-400 | 1450 | 240~360 | 40~52 | 72 | 56.7 | Y280S-4/75 | Y280M-4/90 | Y315M-4/132 |
| 175-150-450 | 1450 | 240~360 | 48~67 | 72 | 73.8 | Y280M-4/90 | Y315S-4/110 | Y315L1-4/160 |
| 175-150-500 | 1450 | 240~360 | 75~85 | 65 | 100.5 | Y315S-4/110 | Y315L1-4/160 | Y315L2-4/200 |
| 175-150-600 | 1450 | 240~360 | 100~115 | 62 | 144.9 | Y315L1-4/160 | Y315L2-4/200 | |
| 200-150-250 | 1450 | 250~520 | 12~23 | 74 | 29.4 | Y225S-4/37 | Y225M-4/45 | Y280S-4/75 |
| 200-150-250A | 250~450 | 12~17 | 72 | 21.8 | Y200L-4/30 | Y225S-4/37 | Y225M-4/45 | |
| 200-150-315 | 1450 | 250~520 | 28~35 | 72 | 48.4 | Y225M-4/45 | Y280S-4/75 | Y315S-4/110 |
| 200-150-315A | 250~450 | 21~31 | 70 | 36.4 | Y225M-4/45 | Y225M-4/45 | Y280S-4/75 | |
| 200-150-350 | 1450 | 320~480 | 32~42 | 66 | 66 | Y280S-4/75 | Y315S-4/110 | Y315M-4/132 |
| 200-150-400 | 1450 | 300~550 | 40~53 | 76 | 71.6 | Y280M-4/90 | Y315S-4/110 | Y315L1-4/160 |
| 200-150-400A | 300~500 | 38~44 | 73 | 57.7 | Y280S-4/75 | Y280M-4/90 | Y315M-4/132 | |
| 200-150-450 | 1450 | 320~400 | 50~65 | 72 | 98.3 | Y315S-4/110 | Y315L1-4/160 | Y315L2-4/200 |
| 200-150-500 | 1450 | 320~400 | 62~80 | 72 | 121 | Y315M-4/132 | Y315L2-4/200 | |
| 200-150-560 | 1450 | 320~480 | 100~123 | 65 | 201 | Y315M2-4/250 | Y355L2-4/135 | |
| 200-200-250 | 1450 | 240~360 | 8.5~14.5 | 79 | 13 | Y180M-4/18.5 | Y180L-4/22 | Y200L-4/30 |
| 250-200-315 | 1450 | 400~600 | 20~32 | 82 | 49.7 | Y250M-4/55 | Y280S-4/75 | Y315S-4/110 |
| 250-200-400 | 1450 | 400~600 | 40~52 | 70.6 | 96.4 | Y315S-4/110 | Y315L1-4/160 | Y315L2-4/200 |
| 250-200-450 | 1450 | 400~600 | 75~85 | 76 | 152.2 | Y315L1-4/160 | Y315L2-4/200 | Y355L1-4/280 |
| 250-200-500 | 1450 | 500~650 | 68~87 | 72 | 192.8 | Y315L2-4/200 | Y355L1-4/280 | |
| 250-200-560 | 1450 | 400~600 | 80~105 | 72 | 189.2 | Y355M1-4/220 | Y355L1-4/280 | |
| 250-250-300 | 1450 | 520~780 | 8.5~14.5 | 74 | 29.9 | Y225S-4/37 | Y250M-4/55 | Y280S-4/75 |
| 300-250-300 | 1450 | 650~1000 | 16~24 | 75 | 58.07 | Y280S-4/75 | Y280M-4/90 | Y315M-4/132 |
| 300-250-400V | 1450 | 650~1000 | 24~33 | 79 | 88.2 | Y315S-4/110 | Y315M-4/132 | Y315L2-4/200 |
| 300-250-400IV | 500~700 | 28~40 | 70 | 88.6 | Y315S-4/110 | Y315M-4/132 | Y315L2-4/200 | |
| 300-250-400A | 400~600 | 24~30 | 66 | 61.8 | Y280S-4/75 | Y315S-4/110 | Y315M-4/132 | |
| 300-250-450 | 1450 | 750~1000 | 38~52 | 78 | 139.6 | Y315L1-4/160 | Y315L2-4/200 | Y355L1-4/280 |
| 300-250-450A | 600~900 | 36~43 | 70 | 117 | Y315M-4/132 | Y315L2-4/200 | Y355M2-4/250 | |
| 300-250-500 | 1450 | 600~900 | 60~75 | 76 | 175.5 | Y315L2-4/200 | Y355M2-4/250 | |
| 300-250-500V | 450~800 | 60~70 | 65 | 74 | Y315L14/160 | Y315L2-4/200 | Y355L1-4/280 | |
| 300-250-560 | 1450 | 650~950 | 75~85 | 74 | 250.1 | Y355L1-4/280 | ||
| 350-300-400IVA | 960 | 530~790 | 14~19 | 71 | 44.5 | Y280M-6/55 | Y315S-6/75 | Y315M-6/90 |
| 1450 | 800~1200 | 35~45 | 73 | 149.2 | Y315L1-4/160 | Y315L2-4/200 | Y355L1-4/280 | |
| 350-300-400IVA | 960 | 530~790 | 8~13 | 72 | 27.5 | Y250M-6/37 | Y280S-6/45 | Y280M-6/55 |
| 1450 | 800~1200 | 20~27 | 74 | 91.9 | Y315S-4/110 | Y315L1-4/160 | Y315L2-4/200 | |
| 350-350-400 | 960 | 1200~1800 | 10~15 | 79 | 65 | Y315S-6-75 | Y315L1-6/110 | Y315L2-6/132 |
| 350-350-400A | 800~1200 | 10~14.5 | 74 | 47.3 | Y280M-6/55 | Y315S-6/75 | Y315L1-6/110 | |
| 350-350-400B | 650~1000 | 10~12.5 | 68 | 40 | Y280S-6/45 | Y315S-6/75 | Y315M-6/90 | |
| 450-400-450 | 1450 | 1600~2400 | 16~24 | 72 | 151 | Y315L2-4/200 | Y355M2-4/250 | |
| 450-400-450 | 1450 | 1250~2000 | 28~35 | 74 | 188.3 | Y315L2-4/200 | Y355L1-4/280 | |
相关文章
